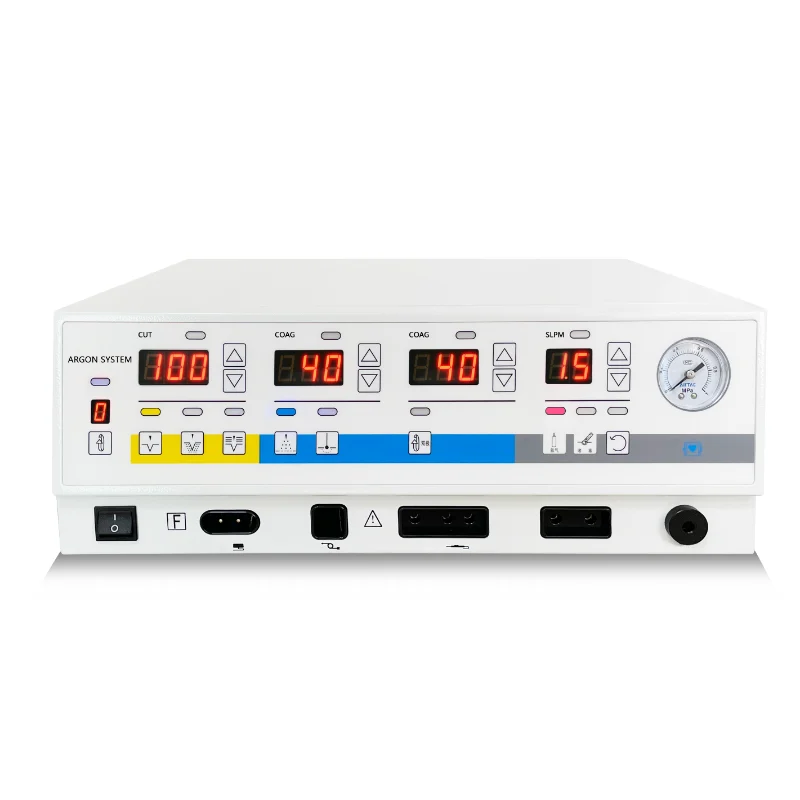

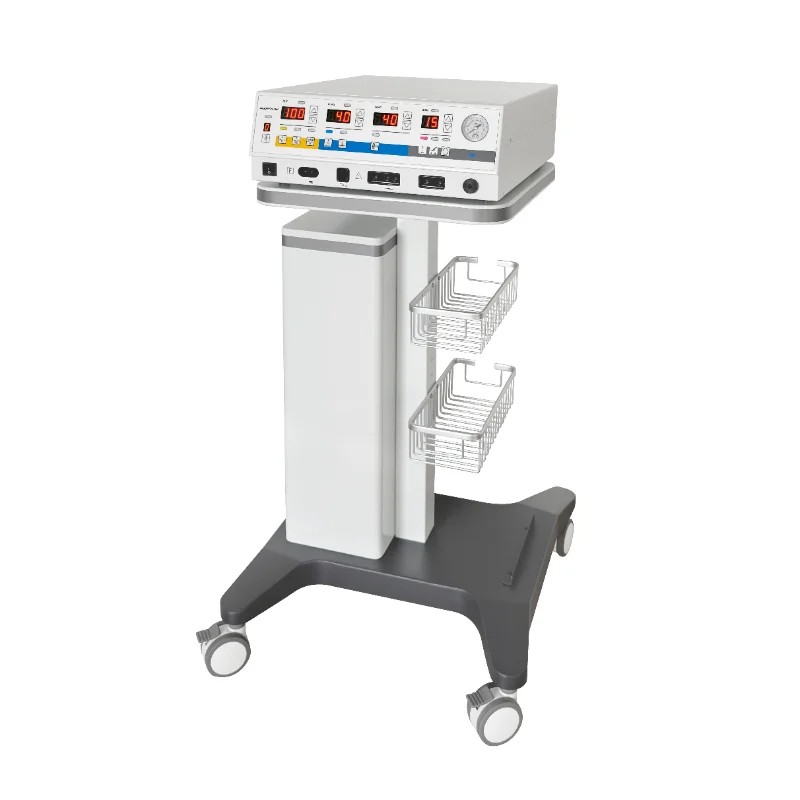

CM-350Ar Argon Plasma Electrosurgical Unit
Full-function power automatic compensation Full suspension power supply, broadband voltage input is not affected by unstable power supply.
General endoscopic Iinterface comply with endoscopes such as gastroscope, enteroscope and laparoscopy
Using ENDO CUT endoscopy mode to provide best coagulation effect under safe endoscopy.
If the abdominal pressure tube is blocked or twisted, an alarm will be issued and the output of argon will be cut off When the pressure of argon cylinder is too low, the system will give an alarm.
Suitable for ESD, EMR, ERCP, POEM, polypectomy, polyp burning and other surgical operations.
The SMART INTERRUPT safety system is used to monitor the nozzle pressure throughout the whole process.
When the trachea of the knife and pen is blocked or twisted, an alarm will be issued and the output ofargon will be cut off. Double-channel argon ion flow regulation, with a precision of 0.1L/min, allows a wide range of argonpressure input from 0.20Mpa to 0.50Mpa, which is not limited by the field gas source.
7 output mode:
a) Cut: 300W
b) Blend 1:200W
c) Blend 2: 150W
d) Spray Coag.:80W
e) Contact Coag: 120W
f) Bipolar Coag.: 70W
g) Argon: Dual Argon airflow adjustment, accuracy: 0.1 L/min; allow wide range 0.20-0.50Mpa argon gas input,unrestrict to
local gas source
Power:220V+22V，50Hz±1Hz
