Intelligent Modular Architecture

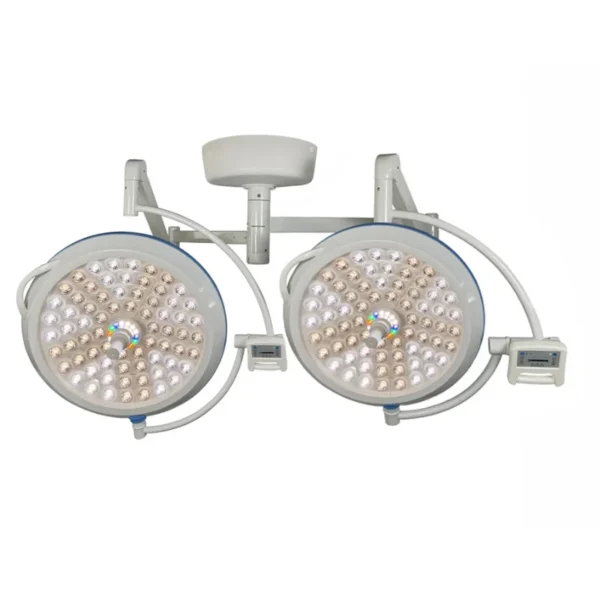

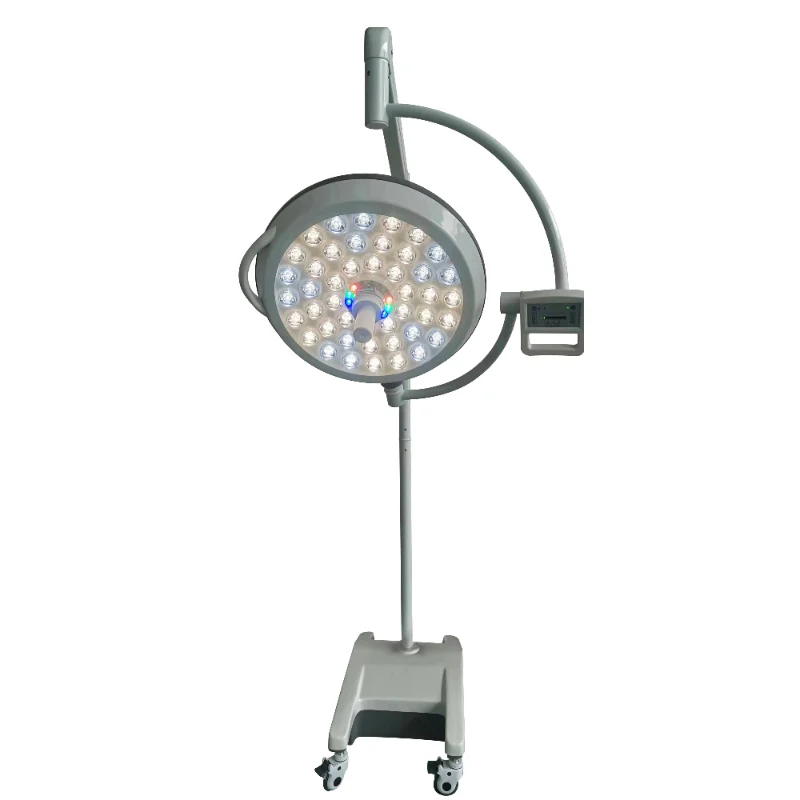

Industry-first customizable surgical lighting: Freely combine 700mm heads (ideal for large-field procedures like orthopedics/trauma) with 500mm heads (optimized for microsurgery/plastic surgery). Configure as single units or dual-head systems for teaching ORs. Both ceiling-mounted (2.8-3m installation) and mobile options available.
Clinical-Grade Performance
Delivers ≤160,000 Lux ultra-bright illumination with ≥1200mm deep-cavity penetration. Medical-grade LED technology ensures CRI ≥96/RA ≥96 true-tissue color accuracy. Patented thermal management maintains ≤1℃ head temperature to prevent tissue drying. Smooth 1-100% brightness control and 3000-6700K color temp adjustment.
Smart Status Monitoring
Integrated RGB indicator provides instant visual status:
Green: Normal operation
Yellow: Sterilization cycle required (adjustable timer)
Red: System error/maintenance needed
Blue/White: Battery status (mobile units)
Technical Specifications
Light Heads: 500mm
Illumination: ≤120,000 Lux @1m
Color Temp: 3000-6700K adjustable
CRI/RA: ≥96
Dimming: 1-100% stepless control
Thermal Rise: ≤1℃
